Watching a 1,000,000 Watt Plasma Arc!

Posted by Justin Grahn on Tuesday, February 27, 2018 @ 01:17 PM

Usually Xiris Weld cameras are used to monitor open weld arcs of many kinds of processes, including plasma welding processes, where the power settings are usually in the range of a few hundred Watts of power.

So imagine when presented with the challenge of monitoring a one million Watt plasma arc! This is exactly what Xiris was asked to do – mount a camera to see such a powerful arc as part of an industrial process. We were not sure how well the camera would respond to the plasma arc as it was so hot and generated such intense bright light that even the dynamic range of the XVC-1000 weld camera may not be sufficient to properly image it.

When setting up the camera, we had to mount the camera far away from the plasma arc, at about 6 ft. (2 m) away, while monitor the entire process in a completely different room. The plasma arc was so powerful that our camera would shake when the arc was activated. Even from a protected room, the noise that the plasma arc generated seemed like standing next to a jet engine.

We were happy to discover that, even with such a powerful light source, the Xiris XVC-1000 weld camera was able to capture clear images of the high-powered plasma arc. The images were good enough to see sufficient detail in the arc for research staff to analyze the behavior of the return arc remotely, without having to be close enough to the plasma source to create hazardous work conditions.

2018_2_27 - Watching a 1,000,000 Watt Plasma Arc

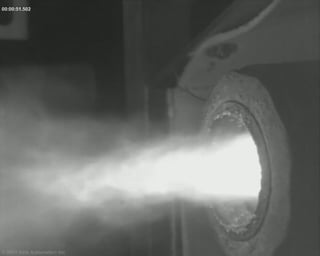

An Actual Image of a 1,000,000 Watt Plasma Arc!
