Weld spatter is an all-too-familiar challenge in welding processes, manifesting as tiny droplets of molten metal that eject from the process and solidify on nearby surfaces.
But have you ever wondered how something so small could have such a significant impact?
While it might appear as a mere nuisance at first glance, weld spatter holds the power to influence production quality, operational costs, and even the functionality of welded components.
So, what is weld spatter, how is it caused and what steps can fabricators take to address this issue?
Furthermore, how can technology, such as Xiris’ High Dynamic Range (HDR) weld cameras, offer real-time insights that help make welding more precise and reduce the possibilities of defects such as spatter? Understanding the answers to these questions is the first step toward mastering spatter control.
What is Weld Spatter?
At its core, weld spatter is a result of ejection of molten metal droplets from the weld pool, often due to volatile reactions within the arc. These expelled droplets solidify upon contact with nearby surfaces, forming rough textures that detract from both the aesthetic and functional qualities of the welded material. Beyond its surface impact, spatter also is an indicator of underlying inefficiencies or imbalances present in the welding process.
Impacts of Weld Spatter on the Production Process
Weld spatter carries consequences that ripple throughout the production line, affecting everything from aesthetics to operational costs.
Aesthetic and Surface Quality Issues
One of the most visible impacts of spatter is the rough, uneven finish it creates of a weld bead and surrounding material. This demands additional cleaning, grinding, or polishing, introducing time-intensive steps that hinder welding productivity. For industries where visual appeal is paramount, such as automotive or aerospace manufacturing, spatter removal becomes an unavoidable burden.
Increased Consumables and Costs
Spatter does more than tarnish surfaces; it accelerates wear on consumables. Nozzles and tips require more frequent replacement because of clogging due to spatter, while cleaning materials and wasted welding wire add up to increased expenses. Addressing spatter proactively reduces these extra costs and extends equipment longevity.
Effects on Functional Surfaces
In precision-driven industries, the presence of spatter poses functional risks to the end products. Deposits on critical surfaces can interfere with mechanical operations, compromise seals, or introduce vulnerabilities in structural integrity. Ensuring spatter-free welds is not just an aesthetic goal but also a functional necessity.
Common Causes of Weld Spatter
Why does splatter happen in welding? The formation of spatter stems from disturbances within the weld pool. Factors such as incorrect voltage settings, excessive heat application, or impurities in the material contribute to the instability of the molten metal. When this instability peaks, droplets of molten material are forcefully ejected from the arc, scattering unpredictably. Recognizing the mechanisms behind this phenomenon allows welders to implement pre-emptive measures to maintain a steady and controlled weld pool.
Key Process Parameters
Spatter generation is often tied to errors in process settings. For instance, improper balancing of power supply voltage and amperage can destabilize the weld arc, causing it to fluctuate and eject molten material. Similarly, uneven wire feed dynamics introduce other disruptions. When wire feed speeds are inconsistent, they can create ripples within the weld pool, resulting in spatter. Precise calibration and maintenance of these parameters ensure a stable and predictable weld environment.

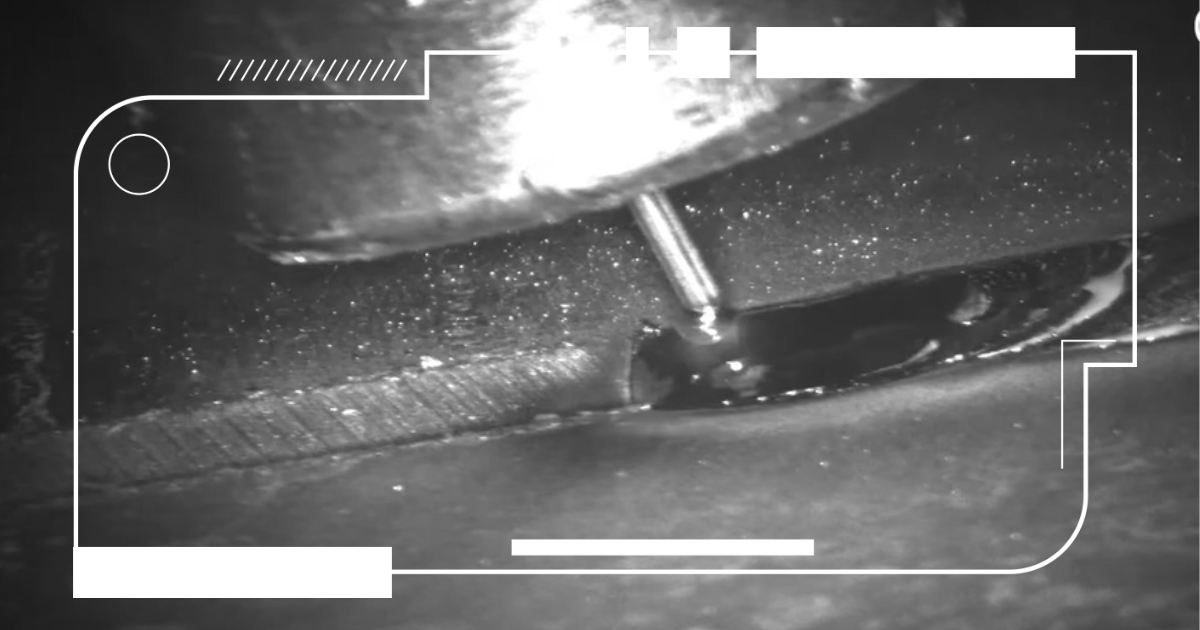

Spatter caused by improper weld settings, captured by a Xiris Weld Camera.
Thermal and Physical Influences
Heat management is critical in welding, and excessive thermal input often leads to spatter. High temperatures reduce surface tension in the molten pool, making it more prone to volatility. Additionally, physical inconsistencies such as material impurities or uneven viscosity exacerbate this issue, creating unpredictable flow patterns. For industries handling sensitive materials, understanding and managing these thermal variables is key to achieving clean welds.
Material and Surface Conditions
The quality and preparation of materials play a pivotal role in spatter prevention. Contaminants such as rust, oil, or dirt disrupt the weld pool’s integrity, creating turbulent reactions that can lead to spatter. Furthermore, materials with low boiling points, like zinc-coated steels, present unique challenges. Under high heat, these elements vaporize, creating explosive jets that propel molten droplets. Thorough surface cleaning and the use of compatible materials can mitigate these risks, enabling smoother operations.
Mechanical Factors in Equipment and Setup
Beyond material considerations, equipment setup can significantly impact spatter production. Misaligned torches disrupt the stability of the welding arc, while spatter accumulation on nozzles or tips reduces weld efficiency and consistency. Routine equipment maintenance, coupled with correct torch-to-seam positioning, ensures that disruptions are minimized and weld quality is maintained.
How to avoid spatter in welding?
Minimizing spatter involves a blend of technical adjustments, material preparation, and innovative solutions. By adopting a strategic approach, industries can achieve cleaner welds and improved efficiency.
Optimizing Welding Parameters
Calibrating voltage, amperage, and wire feed speed is fundamental to spatter control. For instance, adjusting voltage within the recommended range for specific materials stabilizes the arc, reducing disruptions in the weld pool. Similarly, maintaining consistent wire feed speed ensures a smooth and uninterrupted flow of filler material, mitigating spatter formation.
Choosing the Right Materials and Consumables
The selection of high-quality electrodes and wires tailored to the task at hand significantly impacts spatter production. Coupled with thorough surface preparation—including the removal of oils, rust, and debris—these measures provide a stable foundation for cleaner welds. The application of anti-spatter sprays or gels further prevents molten droplets from adhering to surfaces, simplifying cleanup processes.
Implementing Process Adjustments
Pre-process coatings, such as water-based anti-spatter liquids for welding, create protective barriers that reduce adhesion. These coatings make post-weld cleanup more efficient and maintain the integrity of the work surfaces. Additionally, real-time monitoring tools enable welders to adjust parameters on the fly, responding to conditions that may otherwise lead to spatter. Managing heat input can also effectively ensure that molten pools remain stable and controlled.
Using Advanced Equipment and Monitoring Tools
The integration of high-tech solutions like Xiris’ HDR weld cameras could help spatter control.
These systems provide welders clarity by capturing detailed views of the weld arc, spatter ejection, and surrounding material in real time.
By monitoring the effects of varying parameters, such as amperage, voltage, and electrode distance, operators can make precise adjustments in the process that reduce spatter formation significantly.
These innovations not only simplify the troubleshooting of welding defects but also enhance overall welding accuracy and efficiency, paving the way for optimized processes across diverse materials and applications.
High spatter captured during a GMAW process by one of Xiris' welding cameras.
Conclusion: Controlling Spatter for Better Welding Outcomes
Weld spatter, while common, is far from an insurmountable challenge. By delving into its causes and adopting targeted solutions, industries can elevate their welding processes to new heights. Through parameter optimization, material preparation, and the adoption of cutting-edge tools, spatter can be minimized, ensuring cleaner, more efficient operations. As technologies continue to evolve, the future promises innovations that will further refine welding techniques, paving the way for spatter-free production environments that combine precision, efficiency, and quality.
|
|
References:
- Parshuramkar, N. T., Rambhad, K. S., & Chandran, R. (2017). Welding spatter reduction and time study: A review. International Journal of Analytical, Experimental and Finite Element Analysis (IJAEFEA), 4(4), 88-90. DOI: 10.26706/IJAEFEA.4.4.20171025
- Kaplan, A. F. H., & Powell, J. (2011). Spatter in laser welding. Journal of Laser Applications, 23(3), 032005. https://doi.org/10.2351/1.3597830
