Cold lap is one of those defects that doesn’t look catastrophic at first glance but can quietly erode the integrity of a weld over time. It forms when molten metal flows over the base material without truly fusing with it, usually along the outer edge of the bead called the weld toe. Understanding it means looking beyond human technique to the physics of the melt pool, solidification rates, and the subtle clues the weld gives off while it forms. In the sections ahead, we’ll break down what cold lap actually is, what it does to welded joints, how it forms, how to prevent it through both parameter control and modern monitoring systems, and finally how to repair it effectively when it appears.
What Cold Lap Is and How It Appears on Welds

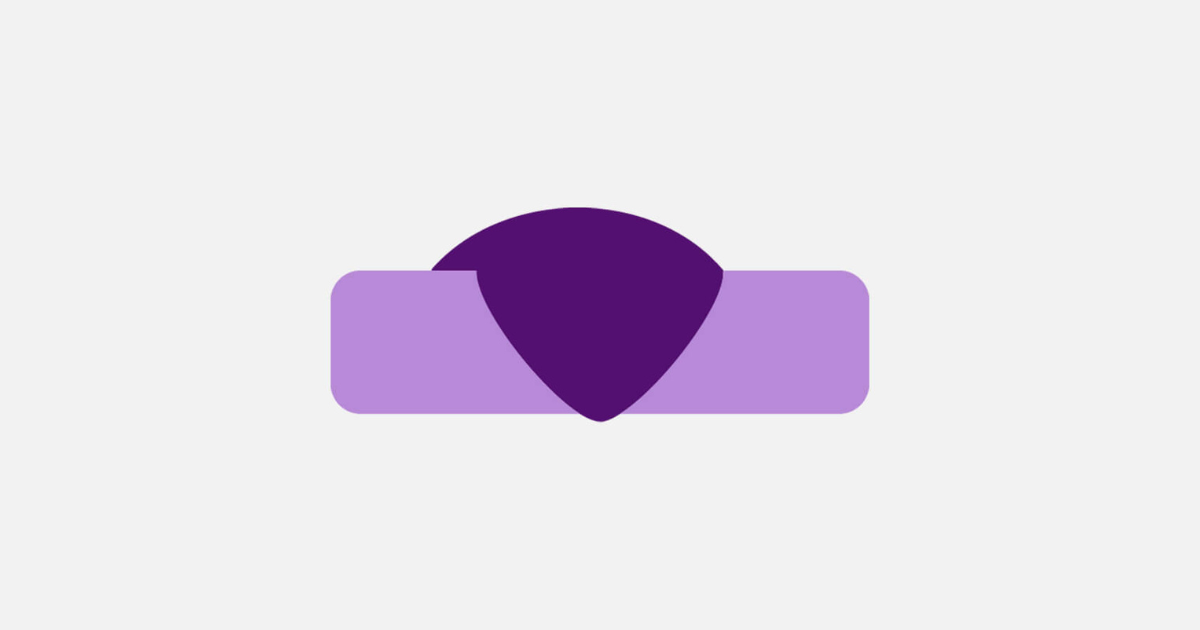

Cold lap can be easy to miss if you’re not looking for it, yet it’s distinct once you know what to watch for. It typically forms when molten filler metal spills forward and spreads over the surface without fully fusing into it. Instead of melting into the base material, it rides on top and solidifies as a thin overhang. This usually happens near the weld toe, which is the transition area between the bead and the base plate, and sometimes at the root of fillet welds where heat transfer is inconsistent.
Visually, cold lap often shows up as a smooth bulge that seems to flow beyond the edge of the weld, leaving a faint line or shadow where the metal never bonded. Under light, this unfused strip can look duller than the surrounding fused areas. Unlike lack of fusion, which usually leaves a distinct groove, cold lap creates a rolled edge that looks deceptively solid. Recognizing this signature appearance is the first step to controlling it, because detecting cold lap while welding is far easier than correcting it later.
How Cold Lap Compromises Weld Integrity
Cold lap leaves behind a deceptively smooth surface, but its real impact lies inside the joint. Because the metal that forms the lap never fuses with the base material, it creates a thin discontinuity right where stresses often concentrate: along the weld toe. This isn’t just a cosmetic flaw. It becomes a mechanical weak point that can change how the whole weld behaves under load.
Local Stress Concentration and Fatigue Initiation
Cold lap disrupts the smooth transition between the weld bead and the base plate, creating a sharp change in geometry. Stress naturally concentrates at geometric notches, and cold lap behaves like one. The unfused region has lower stiffness, so when the joint flexes under cyclic loading, strains accumulate at its boundary. This makes the toe area far more likely to develop fatigue cracks, even when overall loads are well below the weld’s nominal strength. Once cracks start, they tend to grow along the interface between the lap and the base metal, bypassing the stronger fused material. This silent crack initiation is one of the main long-term dangers of cold lap.
Disrupted Load Path and Reduced Effective Throat
Because the metal in a cold lap isn’t bonded, it doesn’t carry structural load. Instead, stresses must detour around it, concentrating in the smaller fused region underneath. This reduces the effective throat thickness of the weld, the portion that actually resists shear and tension. The joint may look full-sized, but its load-bearing cross-section is smaller than it appears. Under high loads, this mismatch can cause early yielding or plastic deformation at the edges, while the center remains intact.
Crack Propagation Along the Interface
The boundary between the lap and the base metal is a natural path for crack growth. It’s often a thin, flat plane of weak adhesion that offers almost no resistance to crack advance. Once a crack forms at the toe, it can slide along this interface much faster than it would through fully fused material. Because this interface is flush with the surface, cracks can stay hidden until they suddenly reach visible size. This behavior makes cold lap especially risky in applications where joints experience vibration, thermal cycling, or impact loading, as these conditions accelerate crack growth along pre-existing unfused planes.
Causes Behind Cold Lap Defect Formation
Cold lap is rooted in how heat moves through the materials and how molten metal behaves at the edge of the pool. These conditions are shaped by several interacting factors: energy density, fluid dynamics, operator technique and surface conditions.
Heat Transfer and Energy Balance
Fusion happens when enough thermal energy reaches the base metal’s surface to melt it slightly so it bonds with the incoming droplet. Cold lap forms when this energy density is too low. The metal cools as it spreads, solidifying on top without melting the base layer beneath. This often happens when arc energy disperses across a wide puddle instead of staying concentrated at the leading edge. Thicker materials pull heat away faster, which makes this effect more pronounced.
Travel Speed and Bead Solidification
Travel speed directly affects how long the molten metal stays in contact with the base surface. If travel is too slow, the puddle grows large and cools at the outer edge, so the metal at the toe solidifies before it can fuse. If travel is too fast, the arc outruns the puddle and deposits metal that barely wets the surface before freezing. Both extremes reduce the time window where bonding can happen.
Arc Direction and Fluid Flow Dynamics
The weld puddle is driven by surface tension, gravity, and the momentum of the filler droplets. If this flow pushes molten metal outward without enough forward arc focus, the metal can wash over the base surface instead of digging into it. This creates a thin skin of solidified metal that looks continuous but isn’t bonded.
Material Surface Condition
Surface condition can make or break fusion. Oxide layers, mill scale, oil, and even fine rust particles act as thermal barriers and wetting inhibitors. When molten metal hits a contaminated spot, it pulls back slightly, forming a film of trapped gas that blocks fusion. The droplet then flows over this spot and solidifies without bonding. Even rough or heavily blasted surfaces can create microscopic gas traps that interfere with bonding. Clean, smooth surfaces help the molten pool wet the base and penetrate instead of sliding off.
Process-Specific Tendencies
Some processes make cold lap more likely than others. Short-circuit MIG often produces larger, cooler droplets that flatten out on the surface, which is why cold lap appears more on thicker materials where heat buildup is slower. TIG welding can cause it too when heat is held too long in one spot, enlarging the pool until it slumps outward and solidifies at the edge. Stick welding can show it during vertical or overhead passes when gravity stretches the pool and weakens toe fusion. In all cases, the underlying mechanism is the same: molten metal reaches the toe without enough energy to melt into it.
How to Prevent Cold Lap During Welding
Preventing cold lap means creating conditions where the molten pool stays small, hot, and well bonded at the edges. That involves controlling heat flow, keeping surfaces clean, and using live feedback to spot problems before they solidify. Modern welding environments make this more manageable than ever thanks to vision systems, sensors, and adaptive power sources that track the puddle in real time.
Controlling Heat and Pool Geometry
Keeping the pool compact is the foundation. Balanced energy density at the leading edge helps the molten metal bite into the base. In MIG welding, this often means matching wire feed with voltage so droplets are small and energetic. Torch angles around 0–15 degrees push the arc forward and prevent the pool from spilling outward. Shorter stickout concentrates heat into the joint instead of letting it dissipate in the air. In TIG, steady travel maintains puddle size, and in stick welding, a tighter arc keeps the droplet hot enough to penetrate. These adjustments reduce the chance of metal skating over the surface.
Ensuring Clean and Consistent Surfaces
Clean metal is critical for wetting. Removing oxides, scale, and oil from the toe area eliminates barriers that stop molten metal from bonding. Consistent joint edges matter too: burrs or irregular profiles can divert flow and create shadow zones where the pool can’t fuse. Even small laps can often be traced to uneven preparation. A smooth, uniform surface gives the pool a clear path to fuse along its entire edge.
Adaptive Control Systems
Some power sources can stabilize energy delivery on their own. When sensors detect that the puddle is growing too wide or cooling too fast, adaptive arc controls briefly boost current to restore energy density at the toe. This prevents the pool from spilling over the edge while keeping overall heat input consistent. It’s a safeguard against the natural fluctuations that often precede cold lap, and it pairs well with visual monitoring for full coverage.
Real-Time Monitoring and Feedback
Modern welding systems can watch the process as it happens. Vision systems and weld cameras track the size and shape of the molten pool, showing when it starts to swell at the edges. High dynamic range (HDR) sensors cut through arc glare so the toe line stays visible even in bright conditions. This is particularly relevant in processes like TIG welding, where arc brightness and pool behavior vary significantly, as explored in better GTAW welds through melt pool thermal analysis.
Near-infrared (NIR) imaging can capture subtle temperature differences at the weld edge that indicate poor fusion before it becomes visible. Automated monitoring software can even flag when puddle geometry or bead wetting drifts from normal, letting operators adjust travel speed or voltage immediately. This feedback loop dramatically reduces cold lap frequency because it stops the defect before it takes shape.
Repairing Cold Lap Without Compromising the Part
Repairing cold lap isn’t complicated, but it does require care. Because the unfused metal only sits on top, it can’t be trusted to carry load or bond to new passes. The repair process focuses on removing it entirely, rebuilding the joint, and verifying that the new bead has full fusion.
Removing Defective Metal
The first step is mechanical removal. Grinding or machining down the affected area exposes the clean, bonded metal underneath. The goal is to eliminate not just the visible rolled edge but the entire zone where fusion is uncertain. Feathering the toe back to the plate surface restores the proper contour for a new pass to tie in. Cleaning the area afterward prevents residual dust or oil from interfering with the next weld.
Rebuilding the Weld
Once the defective metal is gone, the area can be rewelded using the same parameters and practices described in the prevention section. This means keeping the puddle tight, maintaining forward arc focus, and confirming that the edges stay molten while the bead ties in. Shorter beads can help control heat input during repairs so the pool doesn’t expand too much.
Verifying the Repair
After cooling, a simple visual inspection can confirm the result. A smooth toe line without rolled edges, a consistent surface texture, and no visible boundary between the new bead and the base metal are all signs of proper fusion. Some shops also use weld cameras during rework to capture the puddle behavior for documentation. A quick fingertip pass along the toe can also catch raised edges that suggest incomplete removal.
Conclusion
Cold lap often hides in plain sight, forming as a smooth roll of metal along the weld toe while leaving a thin, unfused boundary beneath. It quietly weakens the joint by concentrating stresses, reducing the true load-bearing throat, and laying out a path for fatigue cracks to grow. Controlling it isn’t about surface appearance, but about shaping the thermal and flow conditions at the edge of the puddle so fusion happens cleanly.
That level of control becomes far more achievable when the process is visible. Real-time monitoring systems such as Xiris weld cameras allow teams to actually see the puddle shape, toe wetting, and pool dynamics as they occur, capturing the subtle changes that signal when cold lap is starting to form. Combining this live visual feedback with clean surfaces, balanced parameters, and stable heat flow builds an environment where cold lap rarely has a chance to appear.
