Using Weld Cameras to Minimize Excessive Spatter on GMAW

Posted by Peter Serles on Wednesday, June 28, 2017 @ 04:00 AM

Gas Metal Arc Welding (GMAW) is characterized by the creation of sparks and spatter ejecting from the workpiece as the weld wire/filament shorts and melts over 100 times per second. The creation of spatter is an inevitable part of the GMAW process but it presents a number of issues for the production process, including damaging functional surfaces, increased consumables, and poor finish aesthetics. It may not be possible to eliminate spatter altogether, but it can be greatly reduced with a better understanding of why spatter is created and how to tune your process parameters to control it.

Spatter is the discharge of high temperature material as a result of melt pool surface tension and the conversion of thermal energy to kinetic energy. This sprays small droplets of molten metal onto the surrounding area where they cool and solidify creating a non-uniform surface finish. It is well known that different GMAW processes produce varying levels of spatter but even spray GMAW, which is known for spatter control, can greatly benefit from spatter reduction.

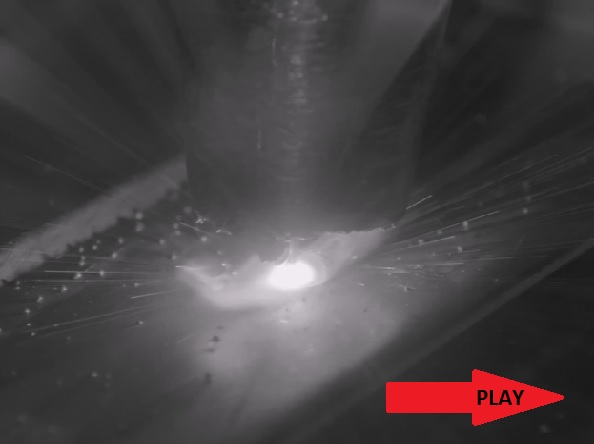

See the full video: Spatter Ejected from GMAW Short Circuit Process on Stainless Steel

June 28 Image 1.jpg



As well as being a nuisance to clean, spatter can be a costly problem for GMAW welding. A case study performed by Welding Answers [1] looked at the benefits of parameter tuning and found that spatter reduction by as much as 85% was possible through better parameter settings, leading to operating cost reductions of 21%. This was achieved through reduced labour costs, less lost filler material and fewer consumables required to post-process the weld.

In order to reduce the total spatter, a strong understanding of welding parameters and their effect on the weld pool is required. According to the ASME, 77% of welding defects including high spatter content are caused by improper processing conditions or operator error [2]. Most commonly, adjusting the amperage, voltage, and distance of electrode to workpiece are the significant factors influencing spatter production. Other factors that influence spatter include wire-feed speed, electrode thickness, and surface contamination.

With the use of a Xiris High Dynamic Range welding camera, the weld arc, spatter ejection, and surrounding material can all be clearly observed and the amount of spatter created during the welding process can be monitored and evaluated. This allows better understanding of the effects of varying the welding parameters and their influence on spatter formation. With a clear view of the operating field, welding parameters for every material and thickness can be adjusted to reduce spatter content and inefficiencies as a result of spatter production and cleaning can be greatly reduced.



For more information on how Xiris Weld Cameras can reduce splatter and enhance your GMAW welding processes visit Xiris.com

You can visit our

 WELD VIDEO LIBRARY

for dozens of examples of the camera in action.

Don't miss any of our amazing videos! Sign up to receive the Weld Video of the Month



References:

[1] http://weldinganswers.com/the-real-cost-of-welding-spatter/

[2] C. Matthews, ‘ASME Engineer’s Data Book’, ASME Press, January 2001

Topics: quality control, Xiris, High Dynamic Range, GMAW, weld monitoring, additive manufacturing

Post Scarf Inspection of Automotive Fuel Line Tubing

Posted by Cornelius Sawatzky on Wednesday, June 14, 2017 @ 04:00 AM

Fuel line tubing is typically manufactured on an ERW welding mill similar to traditional seam welded tubing.  Once the tube has been welded, it moves down the mill for further in-line processing that may include reducing, sizing, annealing and coating processes to meet the customer’s needs.

Fuel line tubing must be perfectly round in order to create a good seal when compression fittings are applied to it. The tube surface must be free from longitudinal scratches, grooves or beads in order to prevent a leak path from developing at the interface point of the fittings.

Immediately after the fuel line tube has been welded and before any further in-line processing is done, the weld bead must be scarfed (the process whereby the weld bead is cut off with a knife).  Unfortunately, the scarfing process can be the primary contributor to creating a leak path on a compression fitting because:

1. Insufficient scarfing can leave a small portion of the weld bead protruding from the     surface of the tube. This may be on either one or both sides of the weld bead where scarfing tool positioning is critical.

June 14 Image 1.jpg

Insufficient Scarfing

2. Excessive scarfing may look perfectly round to the human eye however a non-uniform wall thickness may be lurking below the surface. What is not always apparent and usually only observed during thorough end cut inspection is a thinned portion of the tubing wall that may compromise the integrity of the tube. The reducing process applies enough external force to the tube that the tube may buckle or collapse, causing a deep surface groove.


June 14 Image 2.jpg

Excessive Scarfing

3. A mismatched setup may also be a contributor to a non-uniform wall thickness. The scarfing tool may cut the bead on the outside diameter so that it looks perfectly round to the human eye, disguising the compromised wall thickness below the surface. Sufficient mismatch conditions will most certainly cause the tube to split on end forming later in the fabrication process.

June 14 Image 3.jpgMismatched Defect, Post Scarfing

The Xiris WI2000/3000 Weld Inspection System uses laser-based imaging techniques to continually monitor the scarf zone for any variations in the scarf height, seam mismatch and possible scarf tool wear or chips that may cause a longitudinal line on the tube. By detecting and responding to these conditions proactively, a mill operator is able to reduce the chance of a leak path on the tube and avoid an unplanned stoppage to the mill due to a tube collapse during the reducing process.

For more information on how a Xiris Weld Inspection System can enhance your scarfing processes visit Xiris.com

Don't miss any of our amazing weld videos! Sign up to receive the

Weld Video of the Month

Topics: quality control, Tube and Pipe welding, laser-based monitoring, scarfing, productivity tools, automotive

Get Better Quality from Your Laser Additive Manufacturing Process

Posted by Peter Serles on Wednesday, May 31, 2017 @ 01:26 PM

Additive manufacturing is an increasingly attractive technology that has in recent years graduated from a basic prototyping technology to one capable of producing large volumes of highly intricate part geometries in a wide range of materials. Of particular interest is the ability to produce complex geometries from industry grade metals for use in several fields including aerospace, biomechanics, and mold and die.

ASTM defines three subfamilies of additive manufacturing that are currently able to process metals: direct energy deposition, powder bed fusion, and sheet lamination. These families differ in their setup of feedstock material but all employ a directed energy source such as a laser or electron beam to process it. These laser additive manufacturing processes are characterized by rapid melting and solidification of subsequent layers in a tightly controlled environment.

Due to the repeated melting and solidification of layered material, parts undergo a complex thermal history and present a set of unique thermo-physical and metallurgical challenges. The most common defects seen in the laser additive process are a result of difficulties with maintaining a consistent melt pool caused by insufficient/excessive heat, oxidation, or contamination of the melt pool. The resulting micro-porosity in the build commonly propagates fatigue cracking in finished parts.

May 31 Blog Image 1.jpg

SEM image of fatigue cracking in stainless steel created by selective laser melting [1]

Introducing a Xiris high dynamic range weld camera during the manufacturing process allows the operator to see exactly what is happening during the laser additive manufacturing process, namely how the laser keyhole and melt pool are interacting with the surrounding material and previous layers. With such a camera, the size, shape, and consistency of the melt pool can be directly observed making critical problems such as an uneven melt pool, unfocused or unsuitable laser power, misalignment of the powder supply, or material powder contamination easy to identify and correct.

By determining the root source of these problems, a better understanding of build failure can be obtained and potential issues can be identified before they continue through the entire production process. This is especially useful for products that contain internal cavities or other features that are difficult to inspect post-build. On average, one quarter of the total time required to complete a laser additive manufacturing build is spent on the post-build inspection. The Xiris weld camera provides increased confidence in the quality of your components and can reduce the need for post-build inspection or destructive testing.

Laser  Additive Manufacturing – Steel – Process Monitoring

For more information on how Xiris Weld Cameras can enhance your laser additive manufacturing processes visit Xiris.com

You can visit our

 WELD VIDEO LIBRARY

for dozens of examples of the camera in action.

Don't miss any of our amazing videos! Sign up to receive the Weld Video of the Month

References: [1] Li. R. et al. Densification behavior of gas and water atomized 316L stainless steel powder during selective laser melting. Applied Surface science. 2010. 256(13) pp. 4350-4356.

Topics: quality control, Xiris, High Dynamic Range, laser additive manufacturing, additive manufacturing, productivity tools

Robust Weld Cameras for High Frequency Weld Applications

Posted by Catherine Cline on Wednesday, May 03, 2017 @ 09:29 AM

Electromagnetic interference (EMI) that is generated by high frequency weld equipment can often play havoc with other welding equipment, such as cameras, by creating electromagnetic induction in the circuitry of the cameras.  Often the electrical disturbances that occur create a noisy camera image, interrupt image data acquisition or generate continuous lines running through the image. In xtreme cases, it can stop the cameras from functioning altogether.

May 3 image 1.png

The Xiris XVC-1000e Weld Camera

During extensive testing in the field, Xiris XVC weld cameras have proven themselves to be immune to the EMI that is generated by high frequency weld equipment.  EMI immunity has always been a problem identified by the industry when using cameras, so Xiris took this into consideration when designing the XVC camera family.  The camera is an all digital design, rather than the analog design common on most other weld cameras.  The result is that many problems resulting from outside interference are eliminated, allowing for excellent image stability and cable lengths of up to 100 m.  As part of that design, the camera housings have been extremely well shielded and grounded, eliminating any stray electrical noise.

The XVC weld cameras were extensively tested during the design/build process whereby extreme ranges of frequencies and power levels were used, including some of the harshest welding conditions, such as high power GMAW welding tests, with power approaching 1000A.  During those tests, the XVC weld camera cables were stretched parallel to welding power lines, wrapped around welding power lines and laid on/over/in grounded equipment, all without significant degradation of the camera image.

The camera has been tested to the EN 61326-1:2006 standard which includes the following tests:

  • Electrostatic discharge
  • Radiated RF Immunity
  • Electrical Fast Transients
  • Surge Withstand
  • Conducted RF Immunity
  • Magnetic Field Immunity
  • Voltage Dips
  • Short Interruption
  • Harmonic Current Emissions
  • Voltage Fluctuation and Flicker

The Xiris XVC weld camera is now widely used on manufacturing floors running in some of the most challenging welding environments, including alternating polarity GTAW, high powered GMAW and Plasma processes, providing clear images to operators as far as 100 m away from the weld head.

For more information on how Xiris Weld Cameras can eliminate EMI interference and enhance your weld processes visit Xiris.com

You can visit our

 WELD VIDEO LIBRARY

for dozens of examples of the camera in action.

Don't miss any of our amazing videos! Sign up to receive the Weld Video of the Month

Topics: quality control, image processing, Xiris, welding, productivity tools, EMI

Why Weld Cameras are Essential when Welding Large Pipe

Posted by Cameron Serles on Monday, April 03, 2017 @ 12:56 PM





Apr 3 image 1.png

Large Pipe Fabrication

Welding large pipes using either Submerged Arc or Open Arc welding processes may pose a number of problems, such as:

  • poor alignment of torch to seam
  • improper levels or placement of shielding gas or flux
  • improper joint preparation
  • jammed wire feeders
  • wrong welding power levels

to name just a few.

 In order to avoid these problems and ensure the highest possible quality, welding processes must be monitored closely.  When automated welding processes were first introduced, fabricators stationed an operator in a chair atop a welding machine, such as a column and boom welder, to visually monitor the welding process directly.  Surprisingly, this is still a widely used approach to weld monitoring!

 Apr 3 image 2.png

An empty chair waiting for the operator….

Even today, there are fabricators who are unfamiliar with automated inspection process and are forced to place an operator on a chair high above the welded pipe to monitor the welding process.  This is a health and safety problem waiting to happen!  Not only does the operator face fume inhalation, they risk injury from moving equipment, inadequate protection and dangerous heights.

Apr 3 image 3.png

Can you see the Operator monitoring the process?

In addition to the safety concerns, work breaks are a major drain on productivity.  Just think of the production time lost while moving the gantry robot or hoisting equipment down so that the operator can safely exit the equipment at ground level, not to mention the idle time until the operator returns to their position.

Apr 3 image 4.png

Or Here?

A Better Solution

The better solution is to use a remote monitoring weld camera installed at the weld head that can be viewed from as far as 100 m away.  Operators are on the production floor, removed from the welding process but still able to see all the details of a welding process.   Watch the video below, created by LJ Welding in Edmonton, Alberta, Canada, for an excellent demonstration of how weld cameras are being used in the field:

 Apr 3 image 5-1.png



You can visit our

WELD VIDEO LIBRARY

for dozens of examples of the camera in action.

For more information on how Xiris Weld Cameras can enhance your weld processes visit Xiris.com or REQUEST A DEMONSTRATON

Don't miss any of our amazing videos! Sign up to receive the Weld Video of the Month

Topics: quality control, Xiris, welding, weld safety, Tube and Pipe welding, productivity tools

Upgrade Your View with a Xiris Weld Camera

Posted by Justin Grahn on Monday, March 20, 2017 @ 09:15 AM

Upgrade Your View!

This isn’t the first time Xiris has run into a duct-taped welding shield and it won’t be the last.  A manufacturing company, welding high quality products on a seamer has recently made some major upgrades.

From this:


Mar20 Image1.png

To this:

Mar20 Image2.png

What other single upgrade can so easily and cost-effectively increase quality, raise productivity, reduce health and safety risk, and improve working conditions for your operators?

A Xiris Weld Camera can be retrofitted on virtually any seamer in minutes.

Visit our

WELD VIDEO LIBRARY

for dozens of examples of the camera in action.

For more information on how Xiris Weld Cameras can enhance your weld processes visit Xiris.com or REQUEST A DEMONSTRATON

Don't miss any of our amazing videos! Sign up to receive the Weld Video of the Month
